Professional thermoforming oven

Aluminum platen thermoforming oven for preheating Solid Surface, plastic, and composite materials.

Download data sheet

Download data sheet

Professional thermoforming oven by Global Vacuum Presses

Product overview

What is Professional thermoforming oven?

Professional thermoforming oven is a aluminum platen oven for professional material pre-heating used for pre-heating Solid Surface, plastics and composite materials before bending or forming. It processes acrylic Solid Surface, plastic sheets and composite panels that require even platen heat with direct contact heating with an electric aluminum platen and insulated cover.

Superior Performance

Professional thermoforming oven Advantages

Professional thermoforming oven advantages for aluminum platen thermoforming oven for preheating solid surface, plastic, and composite materials, with clear benefits in efficiency, precision, reliability, and professional production.

Uniform heating by heating platen

Uniform heating by heating platen

Contact heating through excellent aluminum conductor

Operating temperature up to 180ºC

Operating temperature up to 180ºC

Digital temperature control and timer function

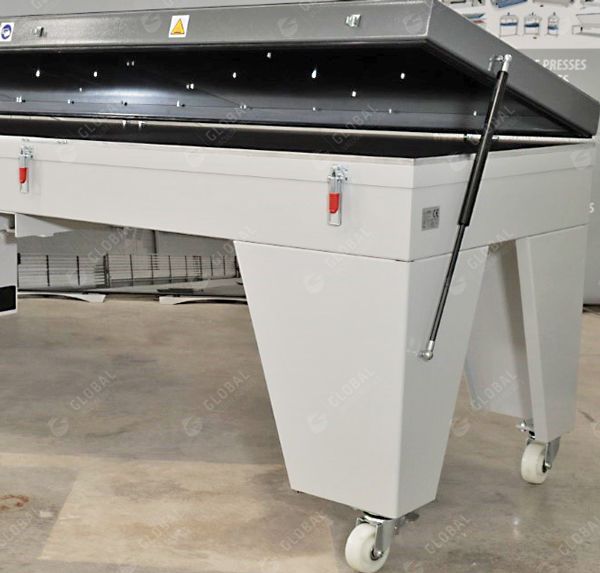

Easy transfer of the material

Easy transfer of the material

Barrier-free top loading and unloading

Energy-efficient heating technology

Energy-efficient heating technology

Only 10% for maintaining temperature

Technical specifications of Professional thermoforming oven

Models
TO-P-2510, TO-P-2514
Heating area
TO-P-2510: 98.4 × 37.4 in (2,500 × 950 mm)
TO-P-2514: 98.4 × 54.3 in (2,500 × 1,380 mm)
Operation
Convenient and easy top loading & unloading
Digital temperature control
Timer function with light-sound indicator
Heating
Single-sided electric heating platen
Anodized aluminum platen
Electronic temperature control system with "Auto-tuning"
Temperature
Max. 356 °F (180 °C)
Working height
39.4 in (1,000 mm)
Supports
4 × Ø 4.9 in (125 mm) Industrial swivel wheels with brake
Electrical
Voltage and phase specified with your quote
Max. power
TO-P-2510: 9.6 kW
TO-P-2514: 13 kW
Dimensions
TO-P-2510: 105.1 × 45.7 × 43.3 in (2,670 × 1,160 × 1,100 mm)
TO-P-2514: 105.1 × 62.6 × 43.3 in (2,670 × 1,590 × 1,100 mm)
Weight
TO-P-2510: 1,190 lb (540 kg)
TO-P-2514: 1,521 lb (690 kg)
Certification
CE – Declaration of conformity CO – Certificate of origin (on request)
Models
TO-P-2510, TO-P-2514
Heating area
TO-P-2510: 98.4 × 37.4 in (2,500 × 950 mm)
TO-P-2514: 98.4 × 54.3 in (2,500 × 1,380 mm)
Operation
Convenient and easy top loading & unloading
Digital temperature control
Timer function with light-sound indicator
Heating
Single-sided electric heating platen
Anodized aluminum platen
Electronic temperature control system with "Auto-tuning"
Temperature
Max. 356 °F (180 °C)
Working height
39.4 in (1,000 mm)
Supports
4 × Ø 4.9 in (125 mm) Industrial swivel wheels with brake
Electrical
Voltage and phase specified with your quote
Max. power
TO-P-2510: 9.6 kW
TO-P-2514: 13 kW
Dimensions
TO-P-2510: 105.1 × 45.7 × 43.3 in (2,670 × 1,160 × 1,100 mm)
TO-P-2514: 105.1 × 62.6 × 43.3 in (2,670 × 1,590 × 1,100 mm)
Weight
TO-P-2510: 1,190 lb (540 kg)
TO-P-2514: 1,521 lb (690 kg)
Certification
CE – Declaration of conformity CO – Certificate of origin (on request)

Data sheet

Professional thermoforming oven.pdf

Download PDF

Frequently asked questions about Professional thermoforming oven

Review common technical and production questions before comparing configurations or requesting a quote.

What is Professional thermoforming oven used for?

How does Professional thermoforming oven work?

Which materials can Professional thermoforming oven process?

What makes Professional thermoforming oven different?

How should Professional thermoforming oven be specified?
