Sprinter Industrial

Heated vacuum membrane press with a movable hood, convection heating, and automatic control for thermoforming, laminating, and industrial forming

Download data sheet

Download data sheet

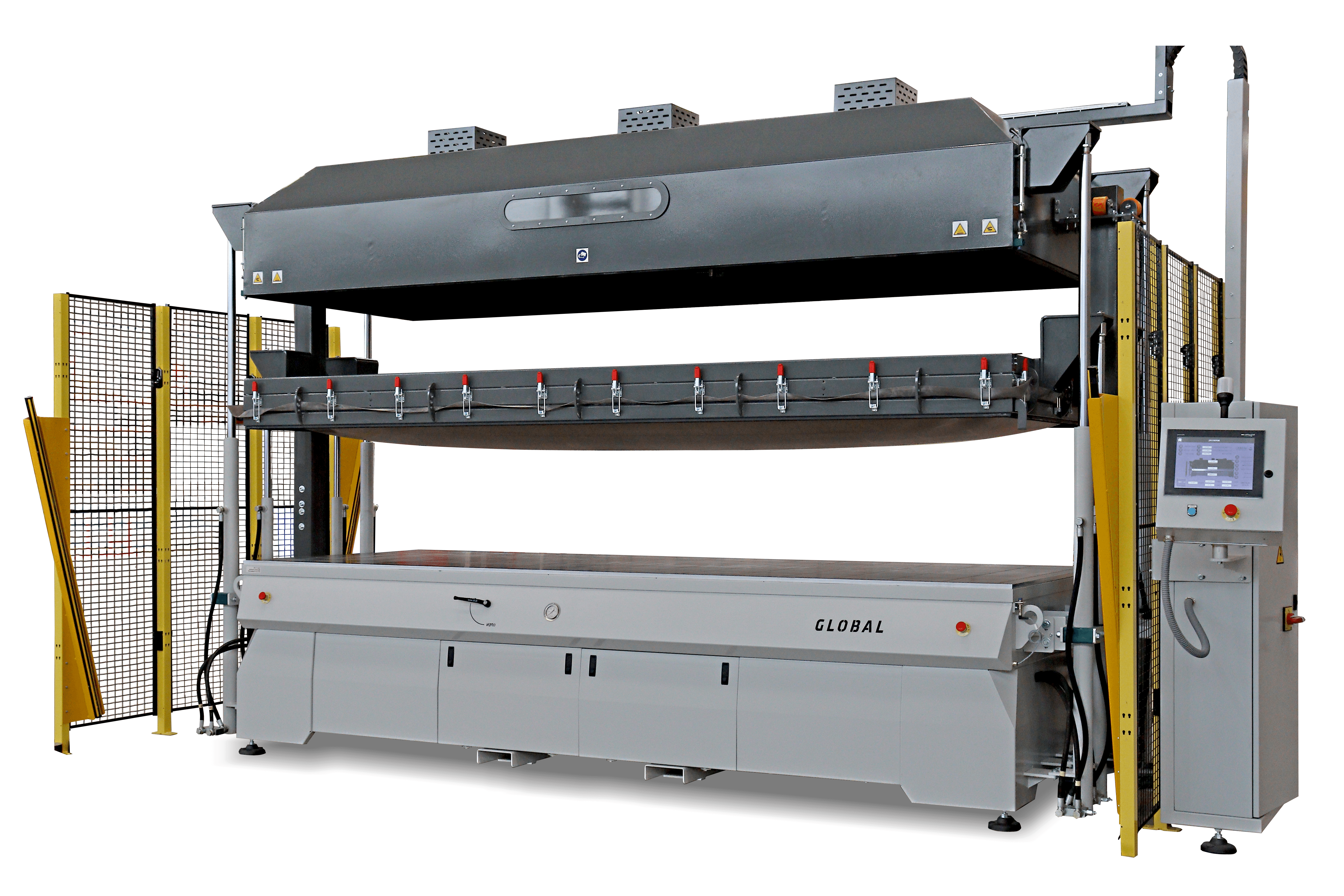

Sprinter Industrial by Global Vacuum Presses

Product overview

What is Sprinter Industrial?

Sprinter Industrial is a heated vacuum membrane press with a movable upper heating hood for industrial veneering, laminating, thermoforming and composite pressing. It processes flat or shaped wood panels, veneers, selected plastics and composites using vacuum membrane technology and turbine-convection heating up to 140 °C.

Superior Performance

Sprinter Industrial Advantages

Sprinter Industrial advantages for heated vacuum membrane press with a movable hood, convection heating, and automatic control for thermoforming, laminating, and industrial forming, with clear benefits in efficiency, precision, reliability, and professional production.

Mobile Heating Dome

Mobile Heating Dome

Sliding hood that facilitates access to the work area and optimizes loading, unloading, and maintenance operations

Simple and precise handling

Simple and precise handling

Touchscreen HMI interface for intuitive configuration and monitoring of key process parameters

Powerful and stable vacuum

Powerful and stable vacuum

Industrial vacuum pump for rapid air evacuation and constant pressure during the process

Uniform vacuum distribution

Uniform vacuum distribution

Grooved table designed to optimize airflow and ensure uniform pressure during the process

Technical specifications of Sprinter Industrial

Models
SP-I-2513, SP-I-3113, SP-I-3713
Press area
100 × 50.8 in (2,540 × 1,290 mm) / 123.6 × 50.8 in (3,140 × 1,290 mm) / 147.2 × 50.8 in (3,740 × 1,290 mm)
Operation
PLC + touchscreen, manual and automatic modes
Heating hood
Insulated double wall, 2–3 convection heating elements, max. 284 °F (140 °C), hydraulic vertical hood movement
Vacuum pump
58.9 CFM (100 m³/h) vacuum pump, rotary vane, oil-free
Pressure switch (auto power ON/OFF)
Max. vacuum
25.5 inHg (150 mbar abs, 85% vacuum)
up to 12.1 psi pressing pressure (8.5 t/m²)
Membrane
Natural rubber / silicone / latex
Work top
0.7 in (18 mm) wear- and heat-resistant HPL compact board
Grid line raster for even air evacuation
Working height 35.4 in (900 mm)
Supports
8 x adjustable anti-slip feet
Safety
Emergency Stop
Overheating protection
Electrical
Voltage and phase specified with your quote
Max. power
SP-I-2513: 25 kW
SP-I-3113: 35 kW
SP-I-3713: 35 kW
Dimensions
SP-I-2513: 121.1 × 62.2 × 78.7 in (3,075 × 1,580 × 2,000 mm)
SP-I-3113: 144.7 × 62.2 × 78.7 in (3,675 × 1,580 × 2,000 mm)
SP-I-3713: 168.3 × 62.2 × 78.7 in (4,275 × 1,580 × 2,000 mm)
Weight
4,916–5,379 lb (2,230–2,440 kg) depending on model
Certification
CE – Declaration of conformity CO – Certificate of origin (on request)
Models
SP-I-2513, SP-I-3113, SP-I-3713
Press area
100 × 50.8 in (2,540 × 1,290 mm) / 123.6 × 50.8 in (3,140 × 1,290 mm) / 147.2 × 50.8 in (3,740 × 1,290 mm)
Operation
PLC + touchscreen, manual and automatic modes
Heating hood
Insulated double wall, 2–3 convection heating elements, max. 284 °F (140 °C), hydraulic vertical hood movement
Vacuum pump
58.9 CFM (100 m³/h) vacuum pump, rotary vane, oil-free
Pressure switch (auto power ON/OFF)
Max. vacuum
25.5 inHg (150 mbar abs, 85% vacuum)
up to 12.1 psi pressing pressure (8.5 t/m²)
Membrane
Natural rubber / silicone / latex
Work top
0.7 in (18 mm) wear- and heat-resistant HPL compact board
Grid line raster for even air evacuation
Working height 35.4 in (900 mm)
Supports
8 x adjustable anti-slip feet
Safety
Emergency Stop
Overheating protection
Electrical
Voltage and phase specified with your quote
Max. power
SP-I-2513: 25 kW
SP-I-3113: 35 kW
SP-I-3713: 35 kW
Dimensions
SP-I-2513: 121.1 × 62.2 × 78.7 in (3,075 × 1,580 × 2,000 mm)
SP-I-3113: 144.7 × 62.2 × 78.7 in (3,675 × 1,580 × 2,000 mm)
SP-I-3713: 168.3 × 62.2 × 78.7 in (4,275 × 1,580 × 2,000 mm)
Weight
4,916–5,379 lb (2,230–2,440 kg) depending on model
Certification
CE – Declaration of conformity CO – Certificate of origin (on request)

Data sheet

SP-I_Sprinter Industrial_en.pdf

Download PDF

Frequently asked questions about Sprinter Industrial

Review common technical and production questions before comparing configurations or requesting a quote.

What is Sprinter Industrial used for?

How does Sprinter Industrial work?

Which materials can Sprinter Industrial process?

What makes Sprinter Industrial different?

How should Sprinter Industrial be specified?
