Sprinter Duo Professional

SP-DP

Multifunctional heated vacuum membrane press with a 140 °C convection hood and an integrated 180 °C sliding drawer oven for thermoforming and vacuum pressing.

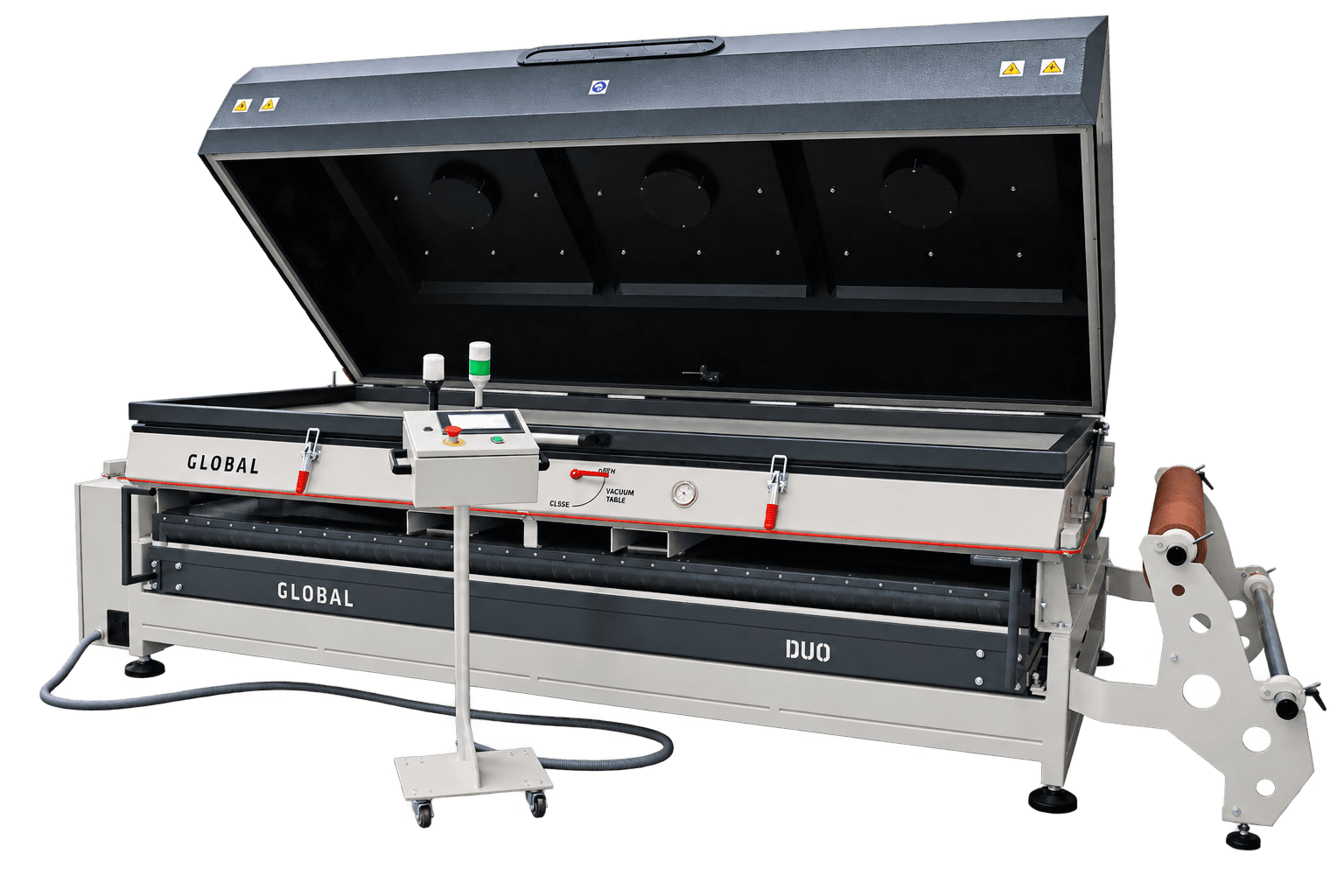

Sprinter Duo Professional by Global Vacuum Presses

Product overview

What is Sprinter Duo Professional?

Sprinter Duo Professional (SP-DP) is a multifunctional vacuum membrane press with an integrated heating hood and sliding drawer oven, designed for professional thermoforming and vacuum pressing. It combines controlled convection heating up to 140 °C, uniform vacuum pressure and manual or automatic operation in one production system.

While the hood heats and forms the part on the vacuum worktop, the 180 °C oven can preheat the next part, helping to reduce waiting times. Three models are available, with press areas of 2540, 3140 or 3740 x 1290 mm, a 100 m³/h oil-free vacuum pump and up to 8.5 t/m² of pressing force.

Superior Performance

Sprinter Duo Professional Advantages

Multifunctional vacuum membrane press with an integrated heating hood and sliding drawer oven, combining controlled heating, uniform vacuum pressure and flexible manual or automatic operation in a single production system.

Parallel production workflow

Parallel production workflow

While the hood heats and forms one part, the integrated 180 °C oven preheats the next, reducing waiting times

PLC and touchscreen control

PLC and touchscreen control

PLC control with touchscreen for manual and automatic operation

Controlled convection heating

Controlled convection heating

Insulated double-wall hood with 2–3 convection elements up to 140 °C and hydraulic hood movement

Stable vacuum performance

Stable vacuum performance

100 m³/h oil-free rotary vane pump for 8.5 t/m² at 150 mbar abs. (approx. 85% vacuum)

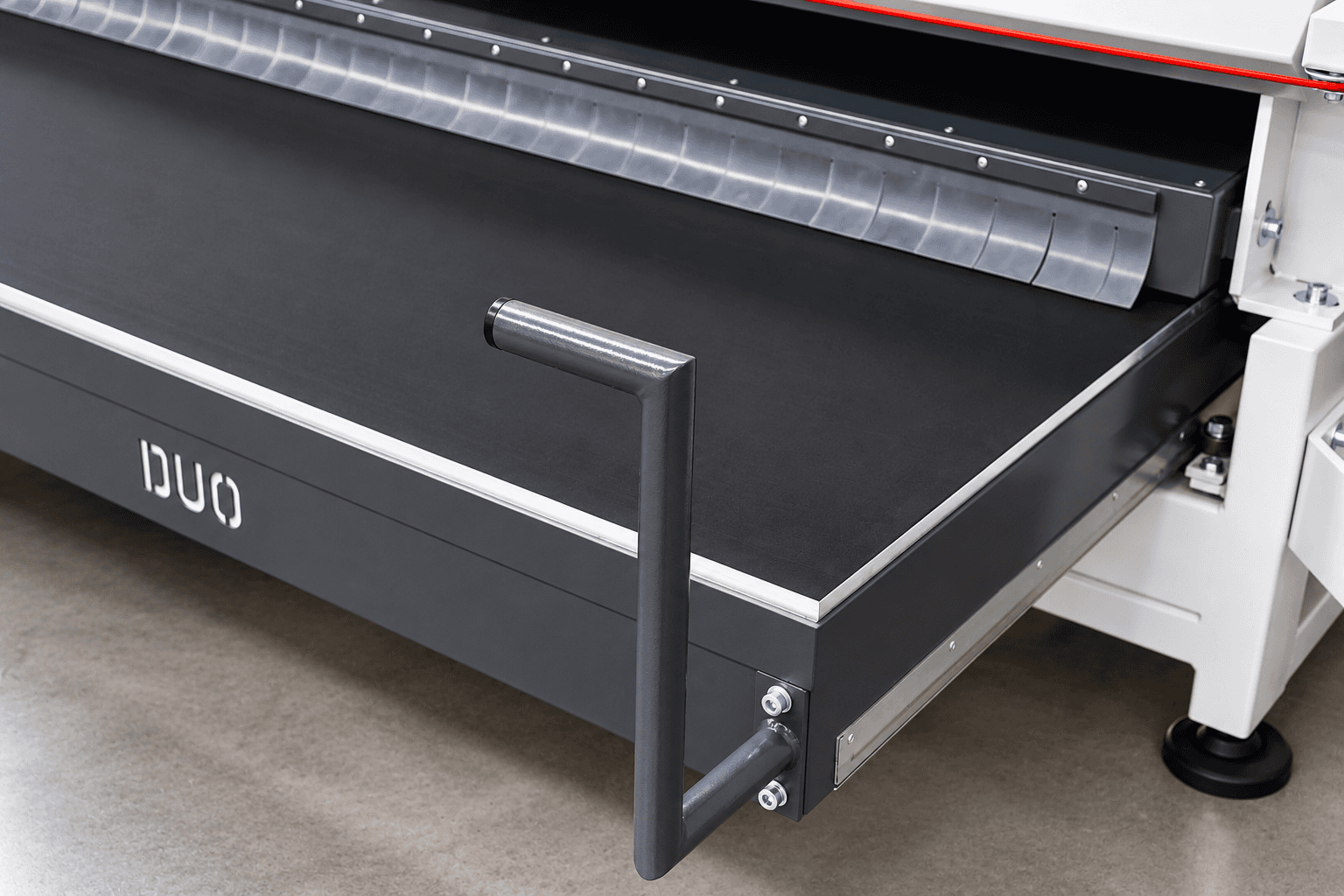

Heating platen

Heating platen

180 °C sliding drawer oven with an anodized aluminum heating platen to preheat the next part

Fitted for 2 PVC rolls

Fitted for 2 PVC rolls

Side holder for 2 PVC rolls plus an included PVC frame (2513 / 3113 / 3713 depending on the model)

Technical specifications of Sprinter Duo Professional

Models
SP-DP-2513, SP-DP-3113, SP-DP-3713
Press area
100 × 50.8 in (2,540 × 1,290 mm) / 123.6 × 50.8 in (3,140 × 1,290 mm) / 147.2 × 50.8 in (3,740 × 1,290 mm)
Operation
PLC + touchscreen, manual and automatic modes
Heating hood
Insulated double wall, 2–3 convection elements, max. 284 °F (140 °C), hydraulic hood movement
Heating oven (sliding drawer)
356 °F (180 °C), anodized aluminum heating platen
Vacuum pump
58.9 CFM (100 m³/h) rotary vane, oil-free
Max. vacuum
25.5 inHg (150 mbar abs, 85% vacuum)
up to 12.1 psi pressing pressure (8.5 t/m²)
Membrane
Natural rubber / silicone / latex
Work top
0.7 in (18 mm) wear- and heat-resistant compact HPL, working height approx. 35.4 in (900 mm)
Safety
Passive safety bars, emergency stops, overheating protection
Electrical
Voltage and phase specified with your quote
Max. power
SP-DP-2513: 25 kW
SP-DP-3113: 35 kW
SP-DP-3713: 35 kW
Dimensions
SP-DP-2513: 128.3 × 55.9 × 78.7 in (3,260 × 1,420 × 2,000 mm)
SP-DP-3113: 129.1 × 55.9 × 78.7 in (3,280 × 1,420 × 2,000 mm)
SP-DP-3713: 168.3 × 55.9 × 78.7 in (4,275 × 1,420 × 2,000 mm)
Weight
5,088–5,551 lb (2,308–2,518 kg) depending on model
Vacuum options
58.9 CFM (100 m³/h) oil-lubricated vacuum pump
9.8 in (250 mm) and 19.7 in (500 mm) high-volume silicone membranes
PVC frame 2513 / 3113 / 3713
Oven and cooling options
Automatic pneumatic oven drawer
sublimation oven configuration on request
set of two cooling turbines
Certification
CE – Declaration of conformity CO – Certificate of origin (on request)
Models
SP-DP-2513, SP-DP-3113, SP-DP-3713
Press area
100 × 50.8 in (2,540 × 1,290 mm) / 123.6 × 50.8 in (3,140 × 1,290 mm) / 147.2 × 50.8 in (3,740 × 1,290 mm)
Operation
PLC + touchscreen, manual and automatic modes
Heating hood
Insulated double wall, 2–3 convection elements, max. 284 °F (140 °C), hydraulic hood movement
Heating oven (sliding drawer)
356 °F (180 °C), anodized aluminum heating platen
Vacuum pump
58.9 CFM (100 m³/h) rotary vane, oil-free
Max. vacuum
25.5 inHg (150 mbar abs, 85% vacuum)
up to 12.1 psi pressing pressure (8.5 t/m²)
Membrane
Natural rubber / silicone / latex
Work top
0.7 in (18 mm) wear- and heat-resistant compact HPL, working height approx. 35.4 in (900 mm)
Safety
Passive safety bars, emergency stops, overheating protection
Electrical
Voltage and phase specified with your quote
Max. power
SP-DP-2513: 25 kW
SP-DP-3113: 35 kW
SP-DP-3713: 35 kW
Dimensions
SP-DP-2513: 128.3 × 55.9 × 78.7 in (3,260 × 1,420 × 2,000 mm)
SP-DP-3113: 129.1 × 55.9 × 78.7 in (3,280 × 1,420 × 2,000 mm)
SP-DP-3713: 168.3 × 55.9 × 78.7 in (4,275 × 1,420 × 2,000 mm)
Weight
5,088–5,551 lb (2,308–2,518 kg) depending on model
Vacuum options
58.9 CFM (100 m³/h) oil-lubricated vacuum pump
9.8 in (250 mm) and 19.7 in (500 mm) high-volume silicone membranes
PVC frame 2513 / 3113 / 3713
Oven and cooling options
Automatic pneumatic oven drawer
sublimation oven configuration on request
set of two cooling turbines
Certification
CE – Declaration of conformity CO – Certificate of origin (on request)

Data sheet

SP-DP_Sprinter Duo Professional_en.pdf
